Introduction
SOCKETConnector is a utility that converts CAD drawings into a format compatible with the Model Viewer. This tool creates the necessary files for uploading and viewing your 3D models in SOCKETWorx.
How To Use

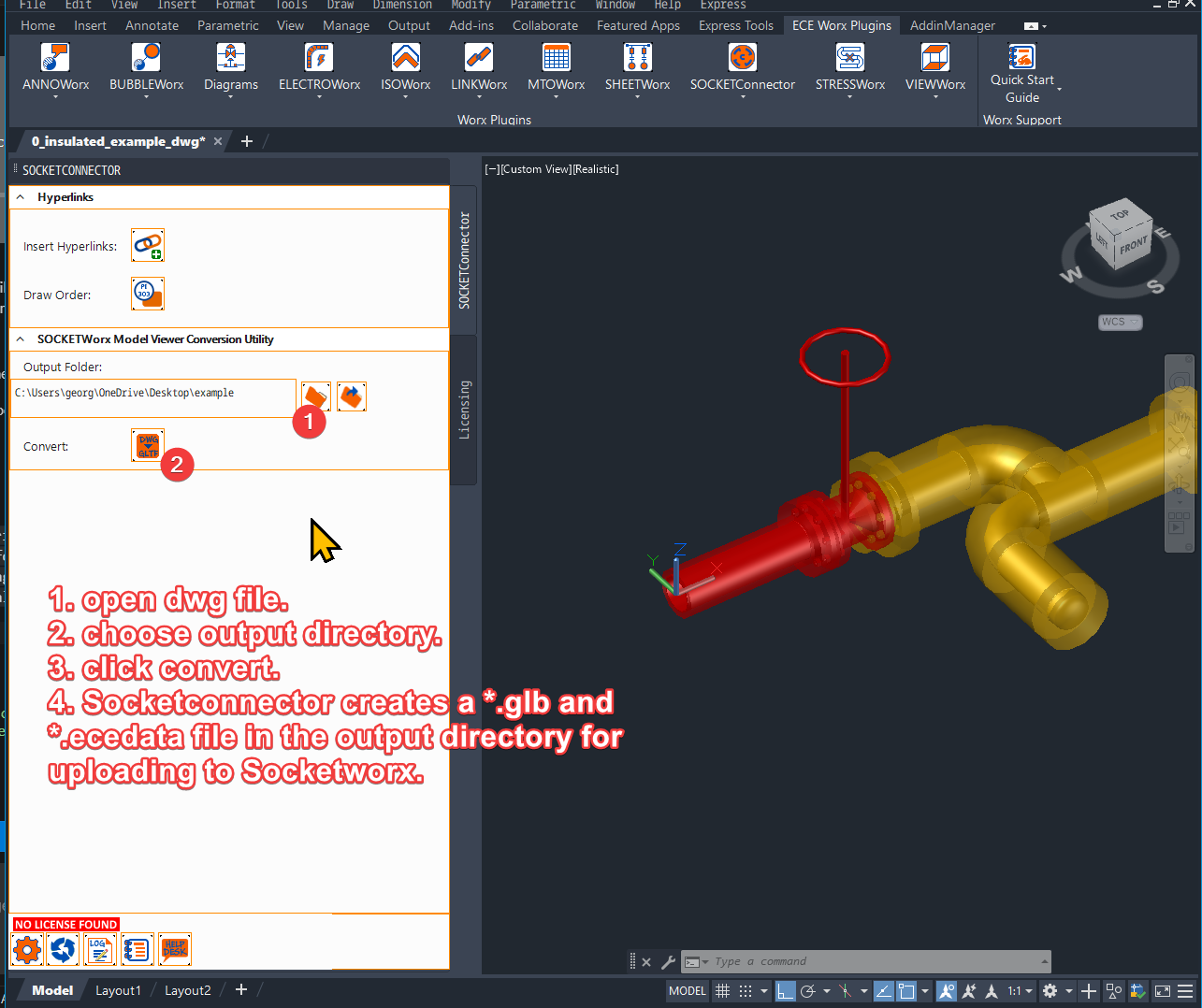

Converting your models with SOCKETConnector is a straightforward process:
- Open your DWG file using the file browser
- Choose the output directory where you want the converted files to be saved

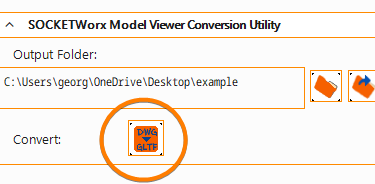

- Click the "Convert" button to start the conversion process
File Output
After conversion, SOCKETConnector creates two files in your specified output directory:
- A *.glb file - Contains the 3D model data
- A *.ecedata file - Contains additional model information
Both of these files are required and must be uploaded to SOCKETWorx to view your model in the Model Viewer.
Note: Make sure to keep track of where these files are saved, as you'll need them for the upload process in SOCKETWorx.
Enhancements
Consider these tips to enhance your model viewing experience:
- You can filter by "Layer" in the model viewer, so you want to ensure your model is properly layered.
- Some entities may not convert correctly if they are very complex. Consider copying your model and creating a model solely for export to the viewer, if conversion fails.
