Issue:

 When I load RIBBONWorx and close AutoCAD or BricsCAD, the ribbon needs to be loaded again.

Solution:

When the installer for the plugins is ran, it should install registry entries for each of our plugins.  If the user does not have administration rights or the machine is locked down in such a way as to not allow software to modify the registry, then these registry entries will fail to be installed.  When this happens the user will need to netload the assemblies.  When the assembly is netloaded inside of AutoCAD the software also attempts to install the registry entries.  This too can fail for different reasons.  When this happens then they will need to be installed manually by using the REGEDIT program inside of windows.  Below is an example of RIBBONWorx and of BUBBLEWorx that demonstrate the two types of registry entries for the plugins.  Please note that the location of the registry entry is determined by the year of the autocad release and the application type.  i.e. AutoCAD vs. Plant3d vs Civil3d vs MEP.



Note: If this needs to be done on multiple machines then do it on one machine and then export the registry entries or use the standard files provided at bottom of this article.  You can then import the entries onto the remaining machines.

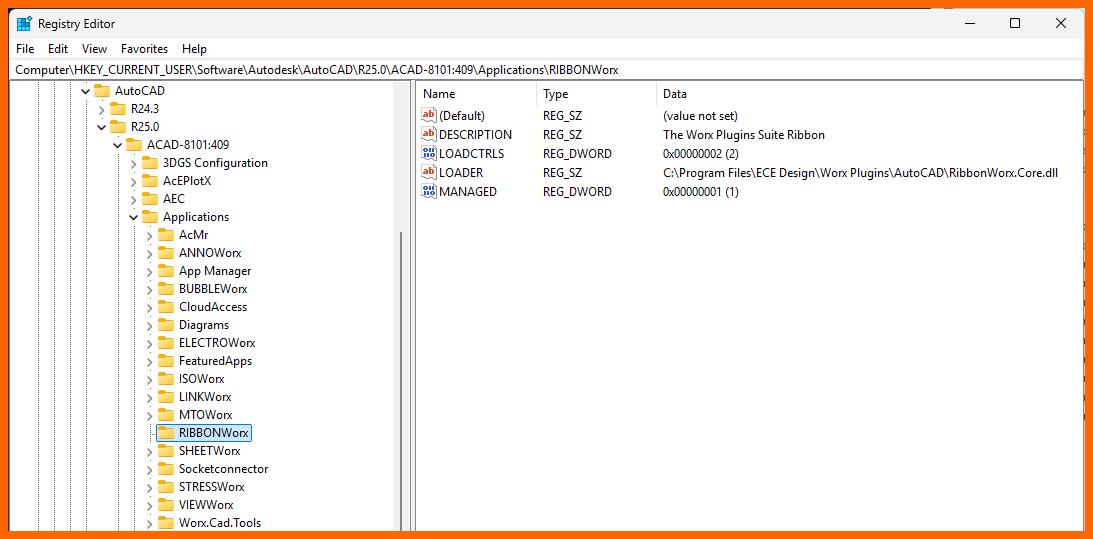

Registry Entry for RIBBONWorx in AutoCAD 2019 MEP



Computer\HKEY_CURRENT_USER\Software\Autodesk\AutoCAD\R22.0\ACAD-1006:409\Applications\RIBBONWorx



Name
Type
Data
Description (Not actually in Registry Entry)
(Default)
REG_SZ
(value not set)

DESCRIPTION
REG_SZ
The Worx Plugins Suite Ribbon
Description of the .NET assembly and is optional.
LOADCTRLS
REG_DWORD
0x00000002 (2)
Controls how and when the .NET assembly is loaded
LOADER
REG_SZ
C:\Program Files\ECE Design\Worx Plugins\AutoCAD\RIBBONWorx.dll
Specifies which .NET assembly file to load.
MANAGED
REG_DWORD
0x00000001 (1)
Specifies the file that should be loaded is a .NET assembly or ObjectARX file. Set to 1 for .NET assembly files.



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT Adobe Affinix Aka mai Allegorithmic Alps App Data Low Apple Computer, Inc Apple Inc. Autodesk ACPROJECT Adui v AutoCAD R21D v R22.O v ACAD-1DD64Dg 3DGS Configuration AEC aecProfiIe Applications AcDgnLS AcMr AcPeffMon ANNOWorx App Manager 8U88LEWorx Commands Groups DIMWorx FeaturedApps ISOWorx LINKWorx MTOWorx PushbuttonPDF2018 R1880NWorx Screencast SHEETWorx STRESSWorx VIEWV,'orx AssemblyMap AutodeskApps AutodeskSeek CONSTRAINT A Name (Default) & DESCRIPTION 34] LOADCTRLS e) LOADER MANAGED Type REG SZ REG SZ REG DWORD REG SZ REG DWORD (value not set) The Worx Plugins Suite Ribbon DxDDDDDD02 (2) Files\ECE Design\Worx DxDDDDDD01 (1)

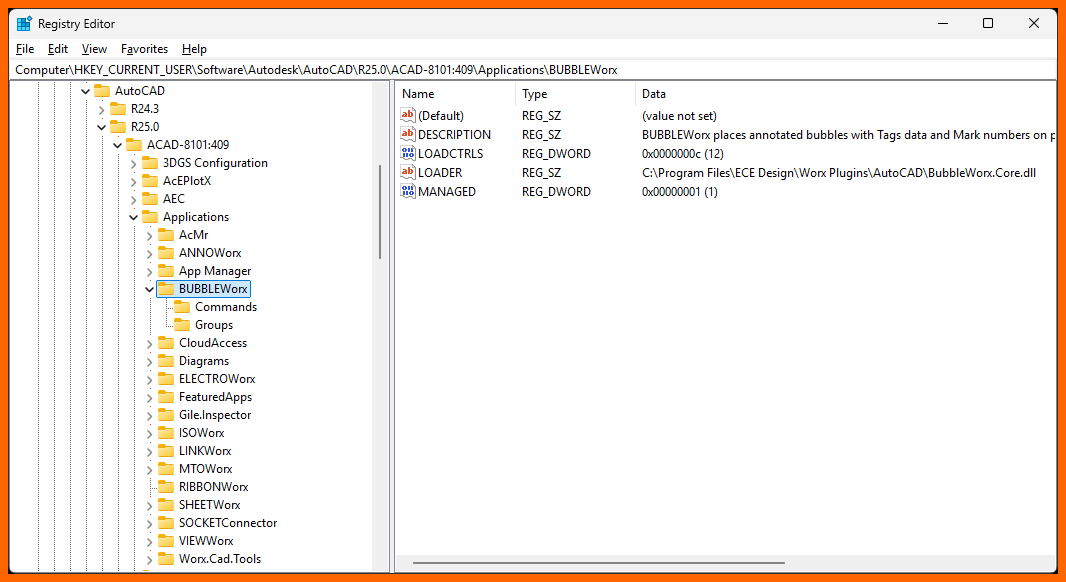

Registry Entry for BUBBLEWorx in AutoCAD 2019 MEP



Computer\HKEY_CURRENT_USER\Software\Autodesk\AutoCAD\R22.0\ACAD-1006:409\Applications\BUBBLEWorx



Name
Type
Data
Description (Not actually in Registry Entry)
(Default)
REG_SZ
(value not set)

DESCRIPTION
REG_SZ
BUBBLEWorx places annotated bubbles with Tags data and Mark numbers on piping component
Description of the .NET assembly and is optional.
LOADCTRLS
REG_DWORD
0x0000000c (12)
Controls how and when the .NET assembly is loaded
LOADER
REG_SZ
C:\Program Files\ECE Design\Worx Plugins\AutoCAD\BUBBLEWorx.dll
Specifies which .NET assembly file to load.
MANAGED
REG_DWORD
0x00000001 (1)
Specifies the file that should be loaded is a .NET assembly or ObjectARX file. Set to 1 for .NET assembly files.



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT Adobe Affinix Aka mai Allegorithmic Alps App Data Low Apple Computer, Inc Apple Inc. Autodesk ACPROJECT Adui v AutoCAD R21D v R22.O v ACAD-1DD64Dg 3DGS Configuration AEC aecProfiIe Applications AcDgnLS AcMr AcPeffMon ANNOWorx App Manager 8U88LEWorx Commands Groups DIMWorx FeaturedApps ISOWorx LINKWorx MTOWorx PushbuttonPDF2018 R1880NWorx Screencast SHEETWorx STRESSWorx VIEWV,'orx AssemblyMap AutodeskApps AutodeskSeek CONSTRAINT A Name (Default) & DESCRIPTION 34] LOADCTRLS e) LOADER MANAGED Type REG SZ REG SZ REG DWORD REG SZ REG DWORD (value not set) 81_188LEWoo: places annotated bubbles with Tags data and Mark numbers on DxDDDDDDOc (12) Files\ECE Design\Worx DxDDDDDD01 (1)



Demand loading registry entries require at least one command to be defined.  Along with the commands will be command groups.  For the plugins there is only one command group.  BUBBLEWorx also only has one command.  See further below for an example of DIMWorx that has multiple commands registered.



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT Adobe Affinix Aka mai Allegorithmic Alps App Data Low Apple Computer, Inc. Apple Inc. Autodesk ACPROJECT Adui v AutoCAD R21D v R22.O v ACAD-1DD64Dg 3DGS Configuration AEC aecProfiIe Applications AcDgnLS AcMr AcPeffMon ANNOWorx App Manager 8U88LEWorx Commands Groups DIMWorx FeaturedApps ISOWorx LINKWorx MTOWorx PushbuttonPDF2018 R1880NWorx Screencast SHEETWorx STRESSWorx VIEWV,'orx AssemblyMap AutodeskApps AutodeskSeek CONSTRAINT A Name el (Default) 8U88LEWorx Type REG SZ REG SZ (value not set) 8U88LEWorx



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT Adobe Affinix Aka mai Allegorithmic Alps App Data Low Apple Computer, Inc. Apple Inc. Autodesk ACPROJECT Adui v AutoCAD R21D v R22.O v ACAD-1DD64Dg 3DGS Configuration AEC aecProfiIe Applications AcDgnLS AcMr AcPeffMon ANNOWorx App Manager 8U88LEWorx Commands Groups DIMWorx FeaturedApps ISOWorx LINKWorx MTOWorx PushbuttonPDF2018 R1880NWorx Screencast SHEETWorx STRESSWorx VIEWV,'orx AssemblyMap AutodeskApps AutodeskSeek CONSTRAINT A Name el (Default) WORXPIugins Type REG SZ REG SZ (value not set) WORXPlugins



An example of a plugin that has multiple commands registered.



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT Adobe Affinix Aka mai Allegorithmic Alps App Data Low Apple Computer, Inc Apple Inc. Autodesk ACPROJECT Adui v AutoCAD R21D v R22.O v ACAD-1DD64Dg 3DGS Configuration AEC aecProfiIe v Applications AcDgnLS AcMr AcPeffMon ANNOWorx App Manager 8U88LEWorx Commands Groups DIMWorx Commands Groups FeaturedApps ISOWorx LINKWorx MTOWorx PushbuttonPDF2018 R1880NWorx Screencast SHEETVVorx STRESSWorx VIEWV,'orx AssemblyMap AutodeskApps A Name (Default) DI MVVoo: ECEDIMENSIONERASE e) ECEDIMENSIONINSERTAUTO ECEDIMENSIONINSERTSEMIAUTO e) ECEVIEWPORTLOCK ECEVIEWPORTUNLOCK Type REG SZ REG SZ REG SZ REG SZ REG SZ REG SZ REG SZ REG SZ (value not set) DIMWorx ECEDIMENSIONEDIT ECEDIMENSIONERASE ECEDIMENSIONINSERTAUTO ECEDIMENSIONINSERTSEMIAUTO ECEVIEWPORTLOCK ECEVIEWPORTUNLOCK





BricsCAD Addendum



For BricsCAD the process is identical except for the location of the entries.



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT 8ricsys v 8ricsCAD 3dMouseMenu Config Plot Dialogs Content Browser Layers Panel Materials Browser Panel PANEL SHEETSETS Menus Properties Bar Recent Paths Status8ar Toolbars VI 764 en US Addins Environment Settings Windows V18x64 en US Addins Applications ANNOWorx Commands 8U88LEWorx Commands MTOWorx Commands Environment Profiles Recent Paths Settings Windows Worksets Caphyon Chromium Classes Clients A Name (Default) & DESCRIPTION 34] LOADCTRLS e) LOADER MANAGED Type REG SZ REG SZ REG DWORD REG SZ REG DWORD (value not set) 8U88LEWorx DxDDDDDDOc (12) Files\ECE Design\Worx DxDDDDDD01 (1)



Machine generated alternative text:Registry Editor File Edit View Favorites Help Computer\HKEY CURRENT 8ricsys v 8ricsCAD 3dMouseMenu Config Plot Dialogs Content Browser Layers Panel Materials Browser Panel PANEL SHEETSETS Menus Properties Bar Recent Paths Status8ar Toolbars VI 764 en US Addins Environment Settings Windows V18x64 en US Addins Applications ANNOWorx Commands 8U88LEWorx Commands MTOWorx Commands Environment Profiles Recent Paths Settings Windows Worksets Caphyon Chromium Classes Clients A Name (Default) 8U88LEWORX Type REG SZ REG SZ (value not set) 8U88LEWORX





We have attached some registry files for AutoCAD 2016-2019 and BricsCAD V17 and V18

To use these reg files, you will need to download the file that corresponds to your version of AutoCAD. Make sure to unblock the file in its properties, then double click the file to run it.

Make sure you close all AutoCAD,  BricsCAD, or CADWorx software prior to merging these files with your registry.


(Editing the Registry can cause serious issues if not done correctly. Do not edit the registry unless you are completely comfortable within the regedit environment)
